The two oldest Handguns of Switzerland

Dear reader, I invite you to switch on your loudspeaker and to enjoy some contemporary renaissance music while reading this.

In the course of an archaeological excavation of the castle of Freienstein, situated in the namesake village of the Canton Zürich, the remains of two handgonnes were found in 1975. According to historical records, the castle burned between 1429 and 1474 and wasn't reconstructed after this. The gonnes were found in the debris together with some swords, locks, and kitchen utensils. Hence the gonnes are certainly older than 1474, probably ca.1380 -1400.

Though, according to the oral history of the locals, the castle became a victim of the "Old Zürich war" (there was also a new one), it's likelier the castle burned haphazardly. This theses is underlined by the fact, that expensive artefacts like swords, armours plus a pan from brass were found among the debris, too. Usually castles were looted before setting them afire.

	Fig. 1: Two handgonnes found in the debris of the Freienstein castle, Canton Zürich, Switzerland. Left: Iron arquebus, cal. 29 mm, with the remains of a hook, serving as a bench rest and a ring as an armement of the wooden stock (now decayed). Right: Iron handgonne, cal. 18 mm. The breech with its touch hole is missing. Obviously it once blasted off and only the cracked barrel remained. The barrel cracked along its weld seam. Photo: Martin Bachmann, Archaeological Service of the Canton Zürich

	Fig. 2: Arquebus cal. 29 mm

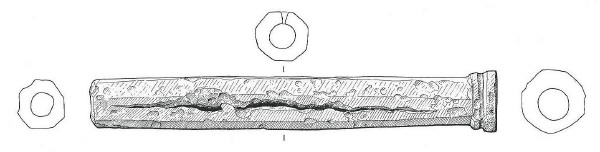

	Fig. 3: Handgonne cal. 18 mm

Comment

In December 2005 I was given the opportunity to study these two gonnes at the Swiss National Museum.
Quite obviously the two gonnes were already scrap when the castle of Freienstein burned in early 15th century.

The breech of the handgonne Fig. 2, which I'm calling arquebus due to its hook, apparently once was sawed off. Considering its section (Fig. 2), it never could be loaded with a bullet, due to its extreme conical core. What we see here is actually only the breech of the former barrel. This is corroborated by the smoothly cut muzzle. Further by the absence of a muzzle bulb, - at that time a stylish must. But why was it sawed off?
Best guess, after my experience, the cause was the very unpractical shape of the breech. After seating the bullet, there remained a too large, conical room for the black powder load. So the shooter had two options: Firstly, he took into account some empty space within the partially loaded breech what made the ignition difficult. Secondly, he loaded the chamber entirely what made a very hefty load. Anticipated a bulk weight of the ancient black powder of ca. 0.7 g/ml and a breech of 57 ml behind the fully seated bullet, the full load was (57 ml x 0.7 g/ml) = 40 g black powder. Help you God!!
To overcome this difficulties, the breech once might have been sawed off, yielding a remaining cylindrical barrel, later closed at its rear end by an iron plug. Presumably a reasonable gonne with this calibre might have had an at least two feet long barrel. So the remaining, improved barrel was still long enough.

What might be the reason handgonne Fig. 3 split? An overload? I'd say no. The barrel with the missing breech looks pretty sturdy. Best guess is: It was a double load. After my personal experience it's careless exercising together with friends. While shooting and loading you are talking and joking with your friends, having a cup of coffee or a glass of beer (in my country not prohibited) in between, and soon you find yourself with a double loaded gun. And believe me: That black powder between the two bullets provides an incredible friction! But we will never know this for sure.

Acknowledgement:

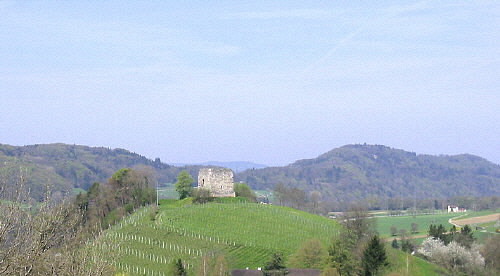

	Fig. 4: The ruin of Freienstein castle atop of a vineyard in northern Canton Zürich, were the two handgonnes were excavated in 1975.
